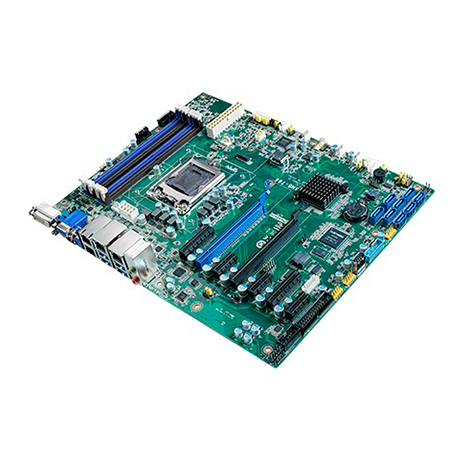

LGA 1151 Intel? Xeon? E & 8th/9th Generation Core™ ATX Server Board with 4 DDR4, 7 PCIe, 6 USB 3.1, 8 SATA3, Quad/Dual LANs, IPMI
ASMB-786研華主板 服務(wù)器主板
?LGA 1151 Intel? Xeon? E & 8th/9th Generation Core™ i7/i5/i3 processors with C246 chipset
?DDR4 2666/2400/2133 MHz ECC/Non-ECC UDIMM up to 128 GB
?One Gen 3.0 PCIe x16 link (or two PCIe x16 slots with x8 link), two PCIe x4, and three PCIe x1 slots
?Triple displays – DVI-D, VGA and HDMI 2.0 ports
?Eight SATA3 ports and six USB 3.1 ports
?Rackmount optimized placement with positive air flow design
?0 ~ 60° C ambient operating temperature range
?Note: Supported OS including Windows 10 (64-bit) and Server 2016 (64-bit) have been validated.
